SOPRASOLAR® FIX EVO (TILT) PVC/TPO

SOPRASOLAR Fix Evo (Tilt) PVC/TPO is a mounting system designed for installation on flat synthetic roofs of new builds and existing buildings, without requiring perforation or adding extra weight to the structure. Similarly to bitumen roofs, a set of raisers can be used to provide the panels with a tilt, if needed.

The mounting is compatible with both TPO and PVC membranes from the SOPREMA’s range of products (Flagon®)

SOPRASOLAR Fix Evo (Tilt) PVC/TPO is incorporated into PV built-ups that have specific requirements.

All of our systems undergo rigorous fire and wind testing to ensure maximum safety. Feel free to contact us for more information!

SOPRASOLAR® FIX EVO (TILT) PVC/TPO

Installation



Mounting system components list

Fix Evo Pedestal (PVC/TPO)

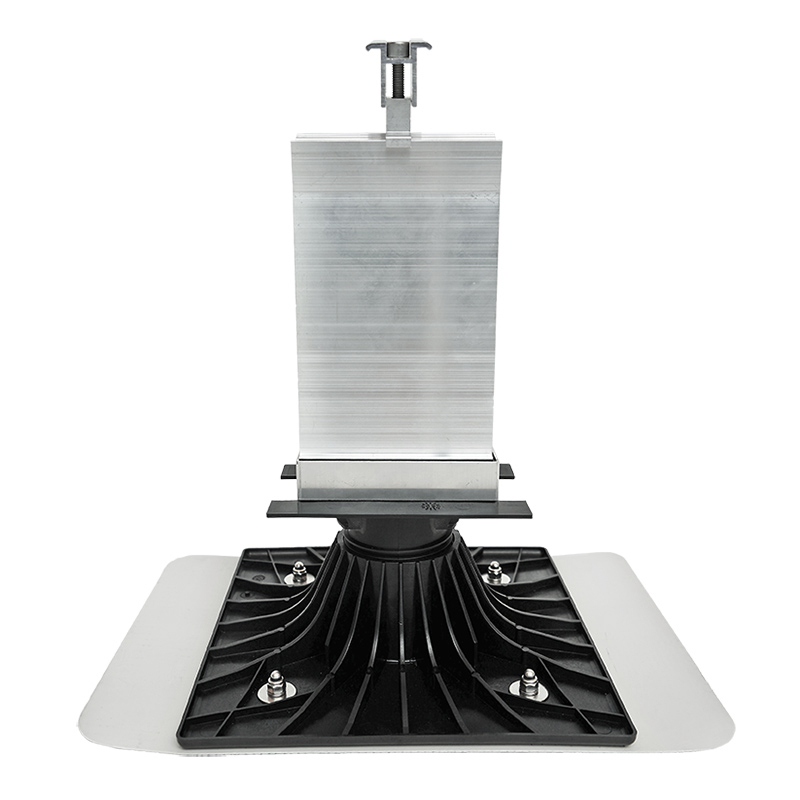

The Fix Evo pedestal is a key component of the Soprasolar Fix Evo (Tilt) system. It provides a base for accessories that are mounted to it, working together to support photovoltaic (PV) modules.

A flange, available in three versions (bitumen, TPO, PVC), is attached to the underside of the pedestal base and designed for welding. The head of the pedestal features a rail along which accessories can be slid for easy installation.

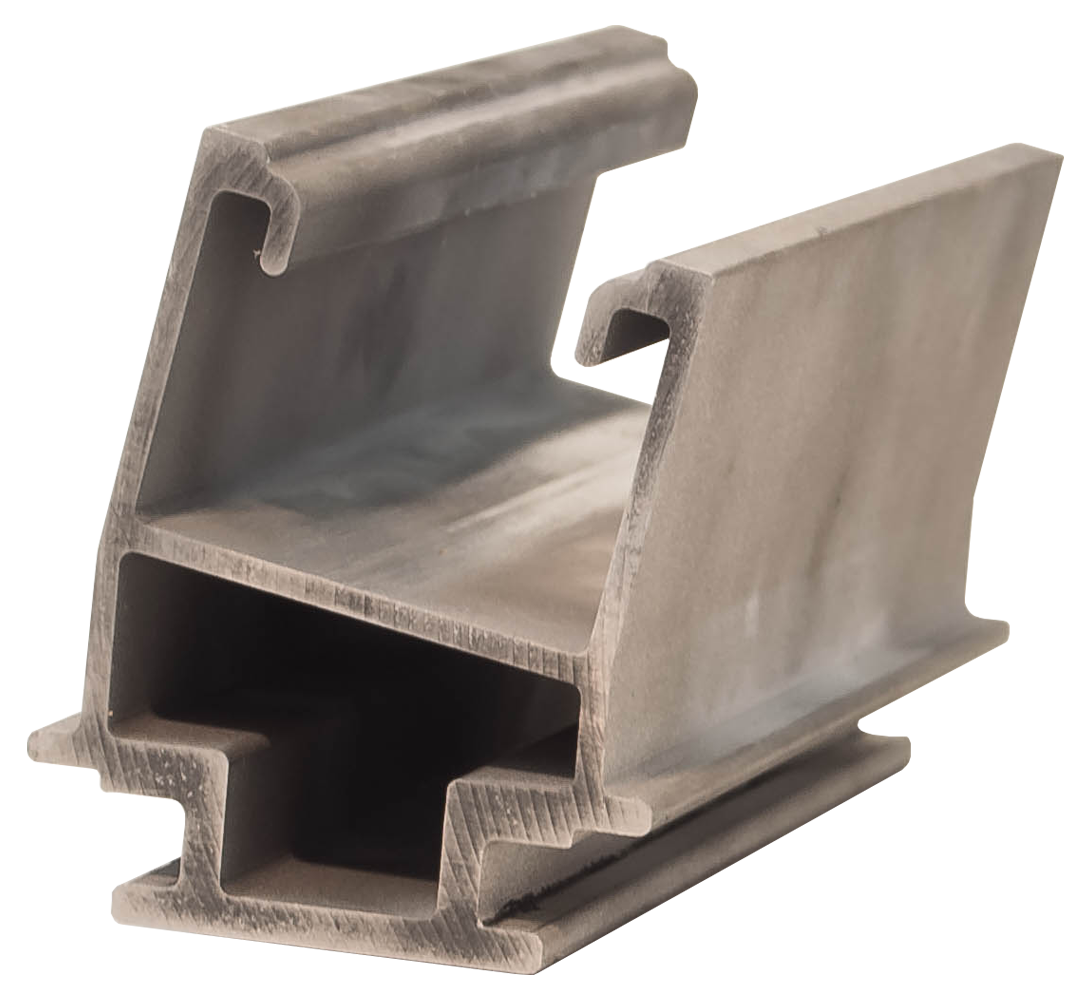

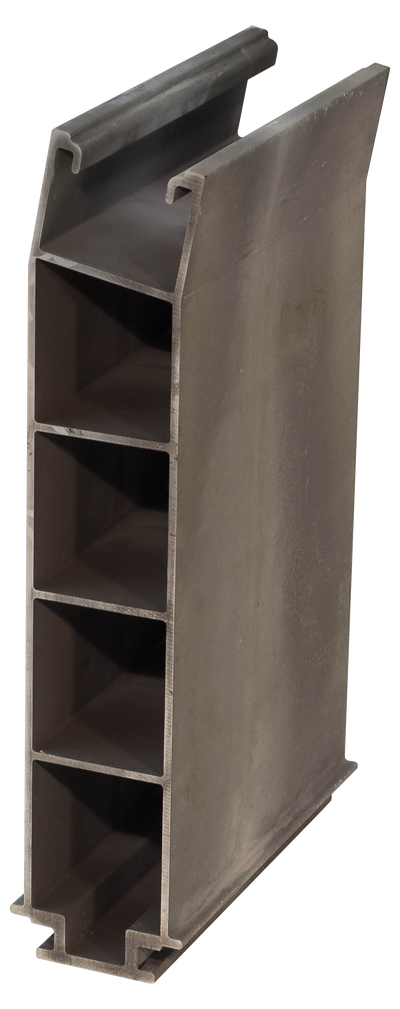

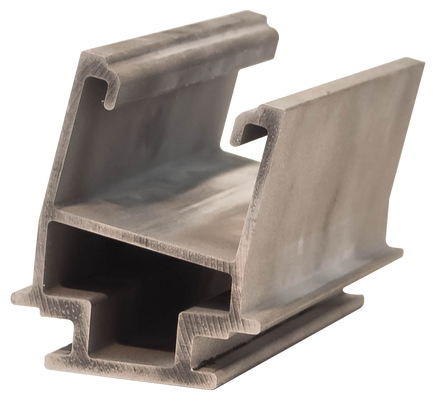

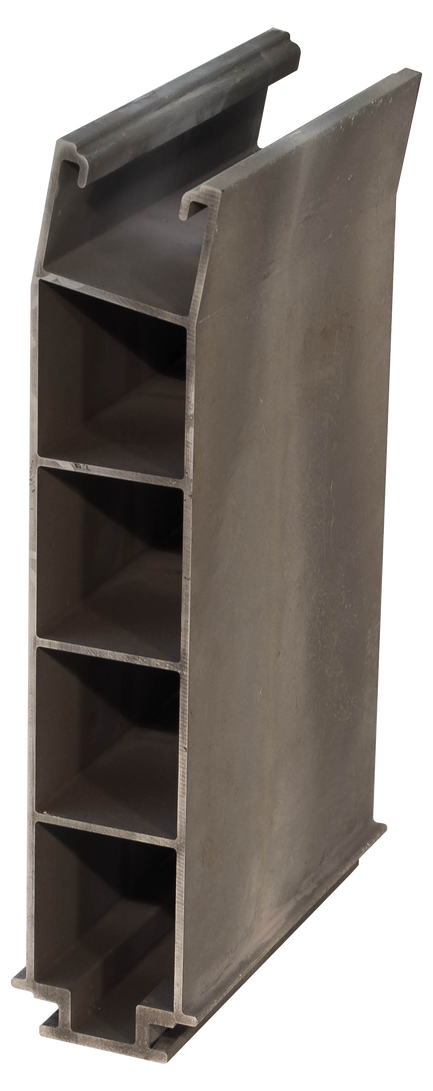

Aluminium Raisers (45/200 mm)

These two aluminium raisers are combined to provide the PV modules with a tilt. This tilt is achieved through their specific geometry, which includes an upper section bent at a 10° angle, along with the height gap between the raisers. Due to their material properties, aluminium raisers require earthing.

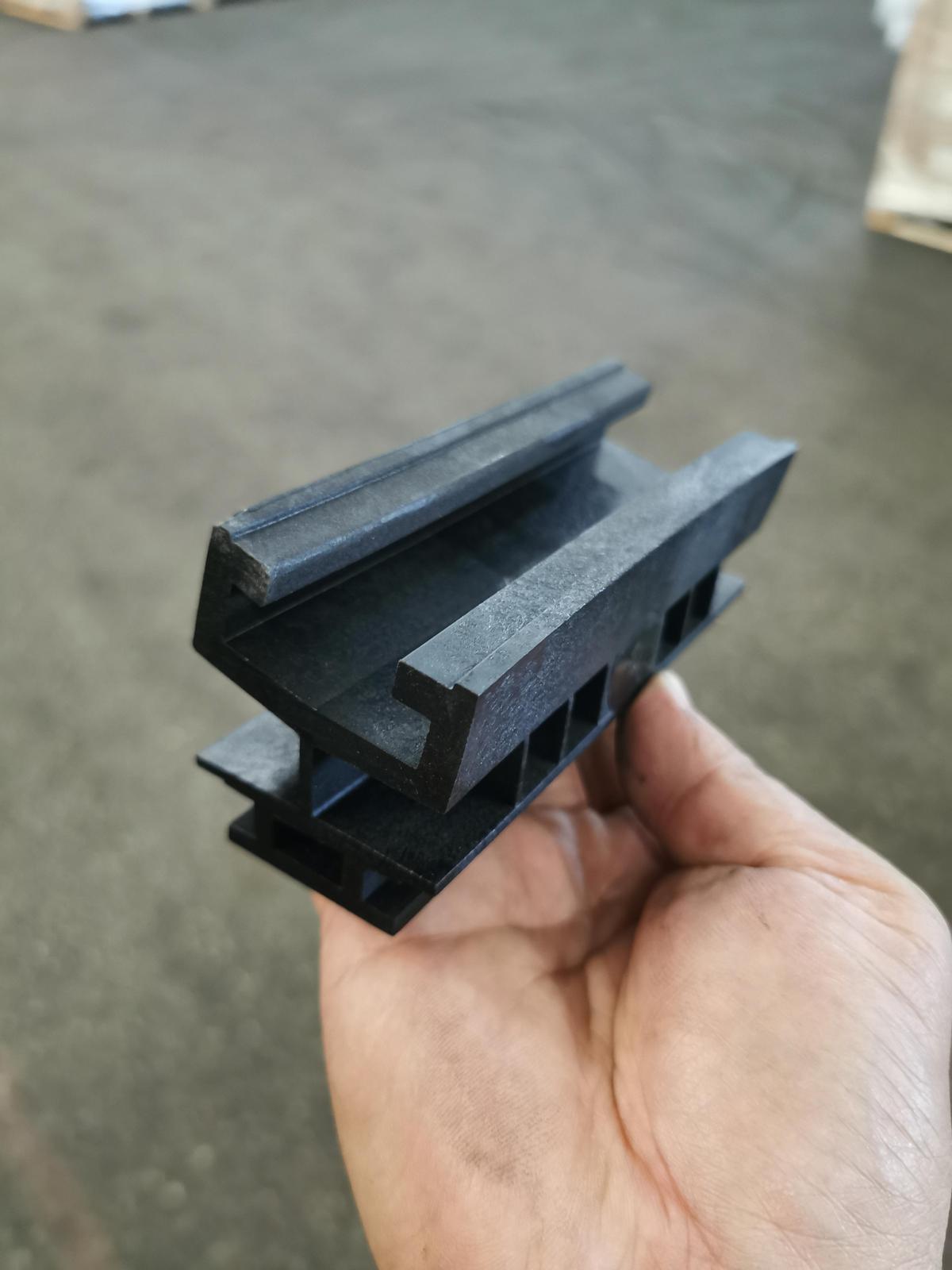

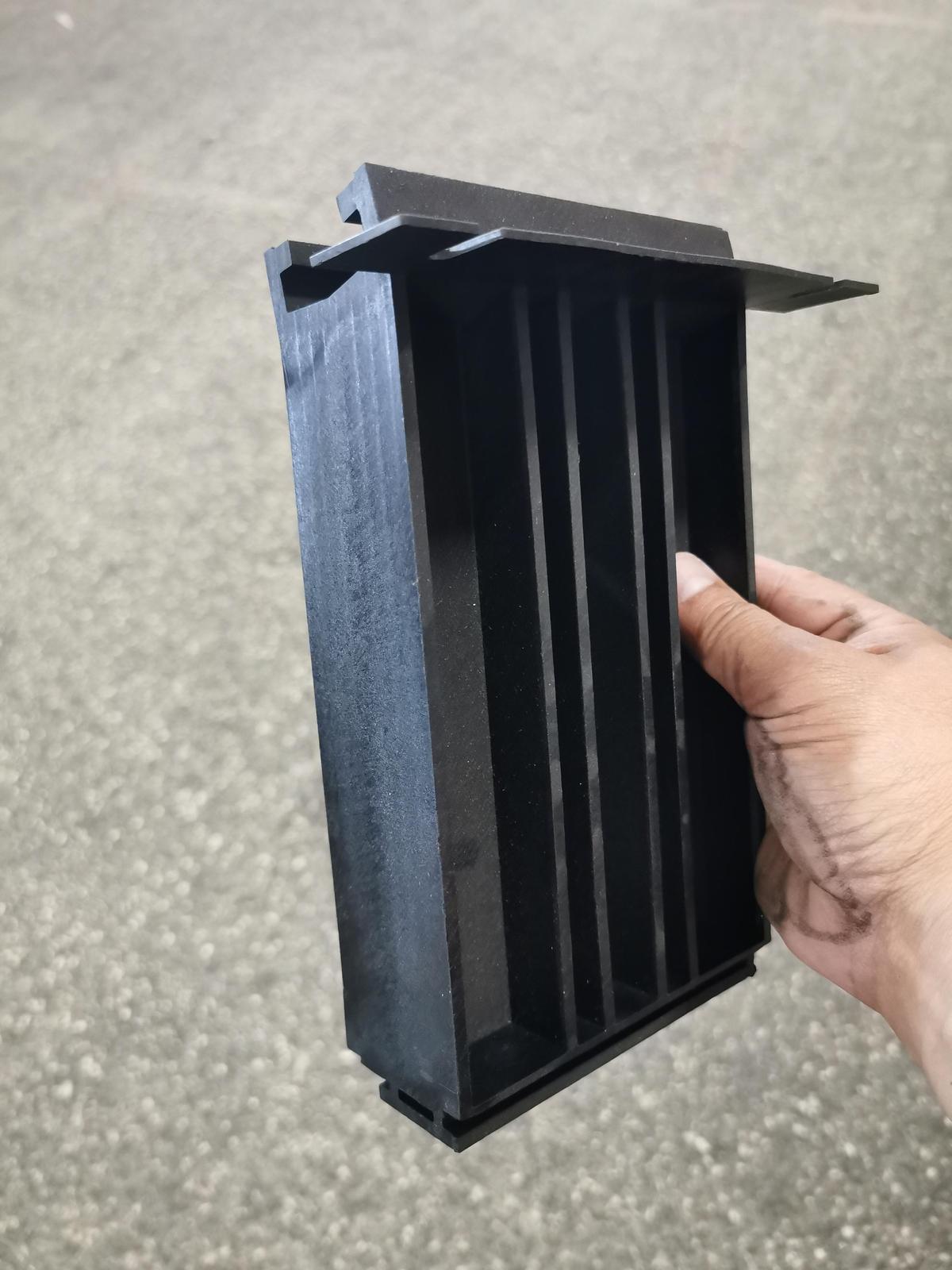

Polyamide Raisers (45/210 mm)

Polyamide raisers work similarly to aluminium raisers. However, they have two key advantages: they do not require earthing, nor do they need a raiser blocker for stability.

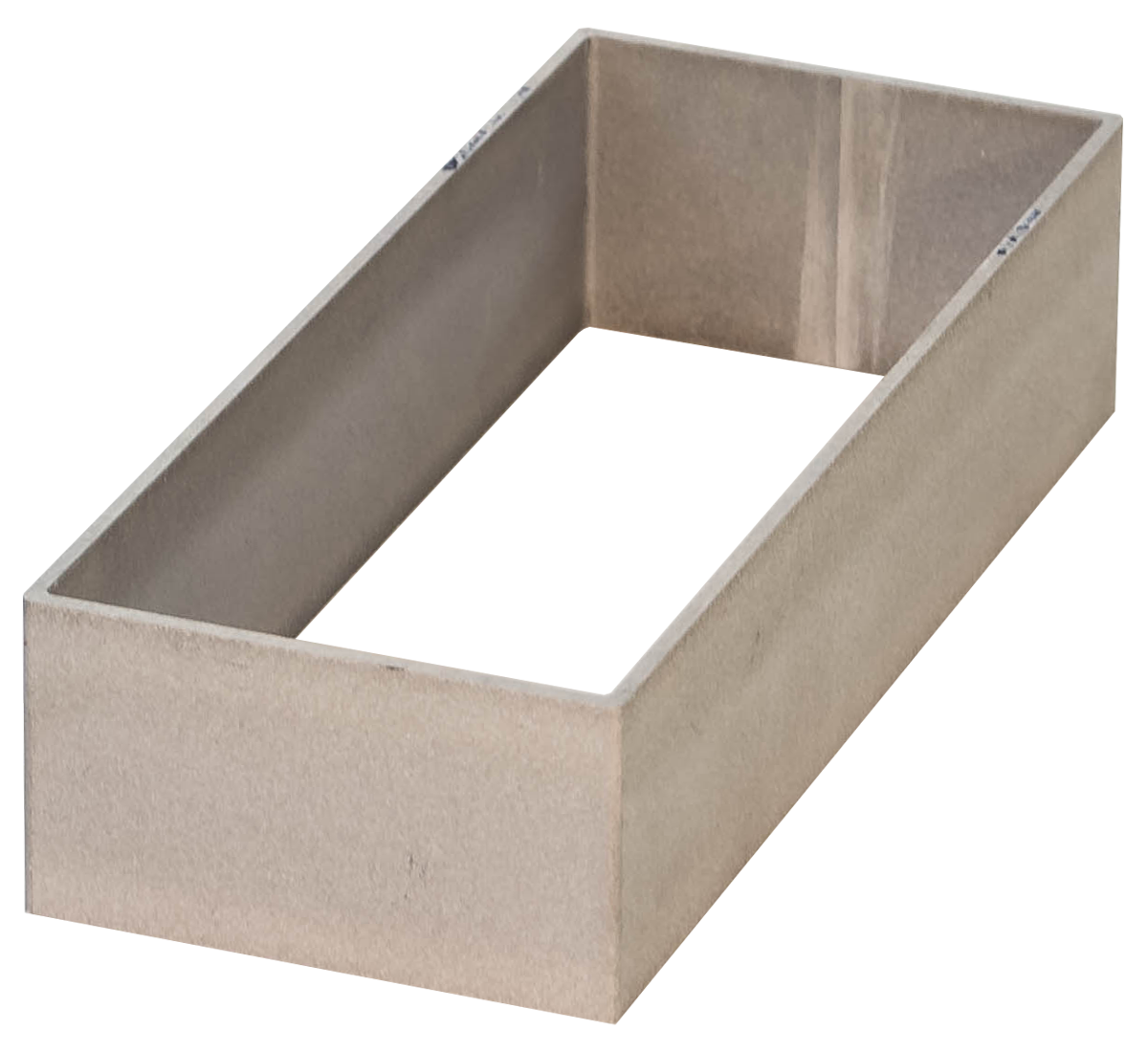

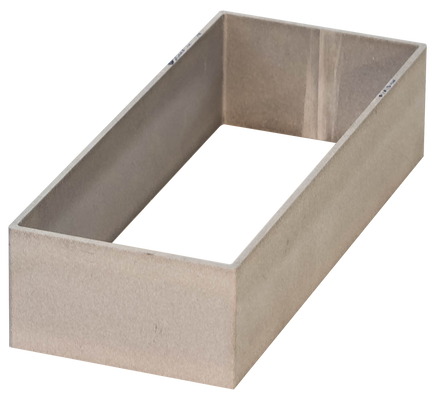

Raiser Blocker

Used exclusively with aluminium raisers, the raiser blocker ensures the raisers remain securely in place over time.

Universal Clamp 30-42

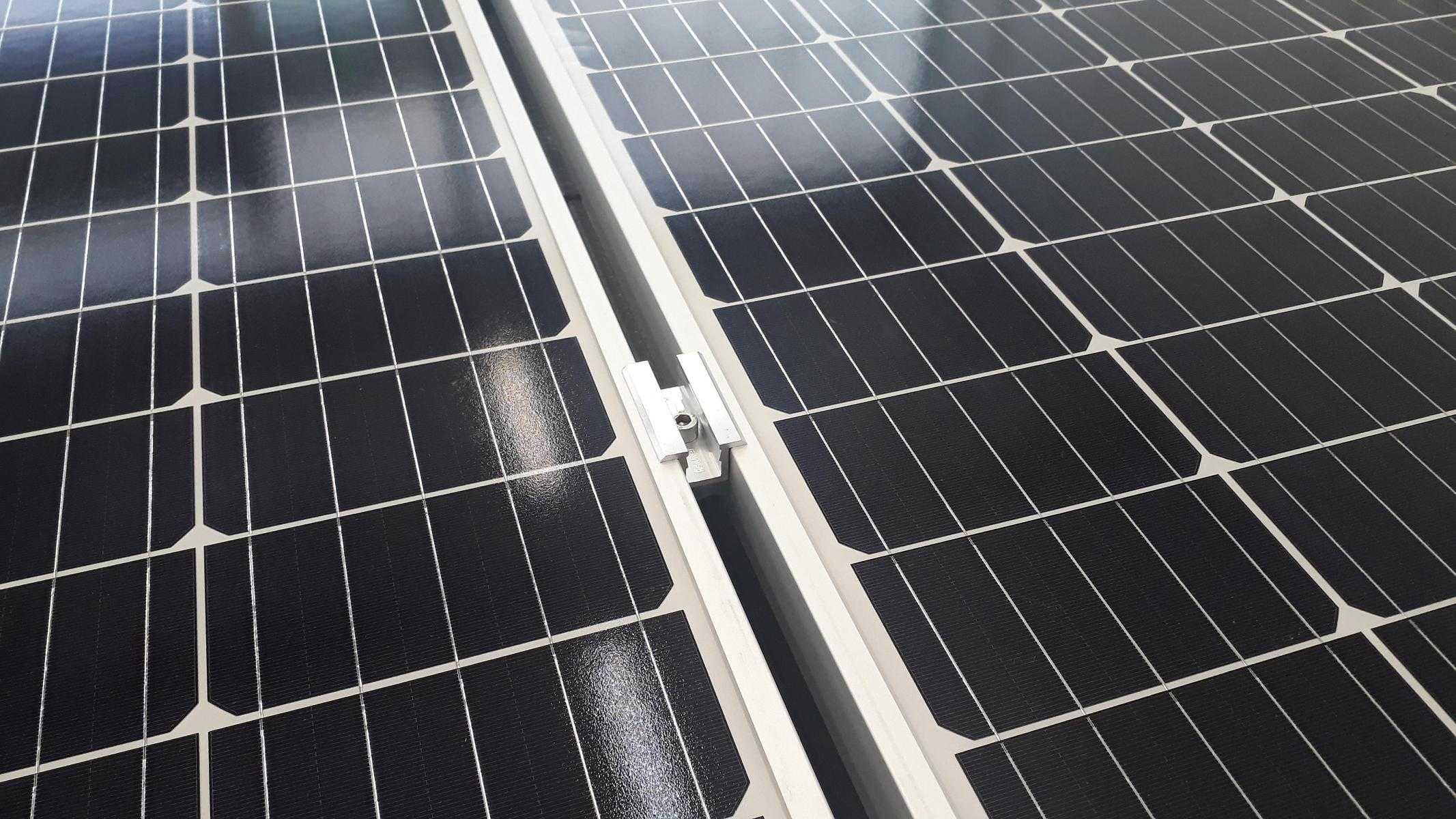

The clamp connects the support structure to the PV module’s frame. It runs along the pedestal’s rail (or the raiser’s rail) and secures the module at clamping zones defined by the module manufacturer.
