SOPRASOLAR® FIX EVO

SOPRASOLAR Fix Evo is a mounting system designed for installation on flat bitumen roofs of new builds and existing buildings, without requiring perforation or adding extra weight to the structure. In this configuration, the solar panels are mounted flat, on patented pedestals.

Fix Evo is incorporated into PV built-ups that have specific requirements.

All of our systems undergo rigorous fire and wind testing to ensure maximum safety. Feel free to contact us for more information!

SOPRASOLAR® FIX EVO

Installation



Mounting system components list

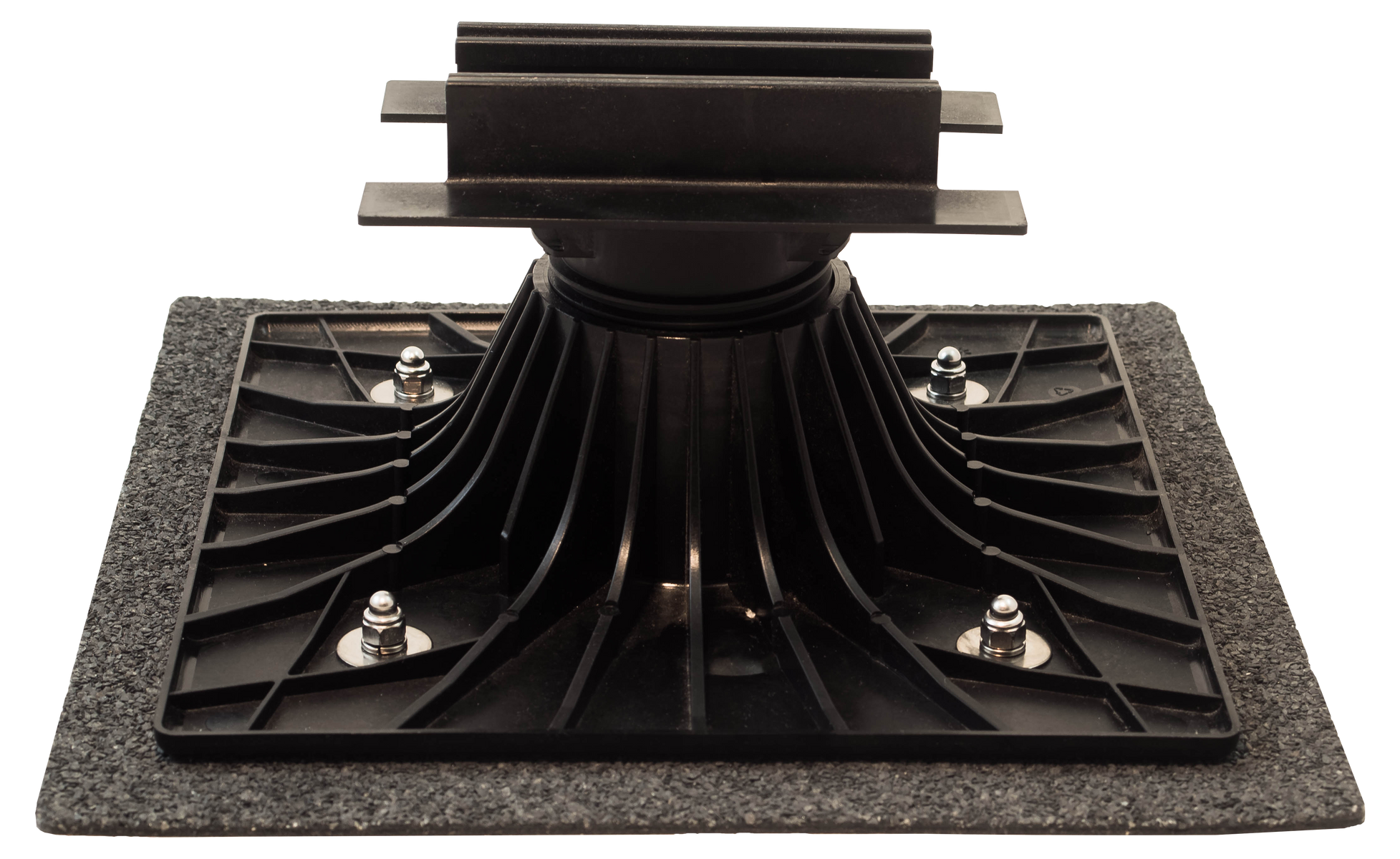

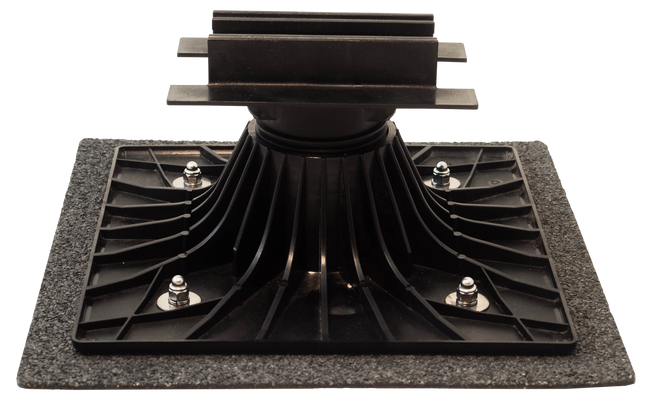

Fix Evo pedestal

The Fix Evo pedestal is a key component of the Soprasolar Fix Evo (Tilt) system. It provides a base for accessories that are mounted to it, working together to support PV modules.

A flange, available in three versions (bitumen, TPO, PVC), is attached to the underside of the pedestal base and designed for welding. The head of the pedestal features a rail along which accessories can be slid for easy installation.

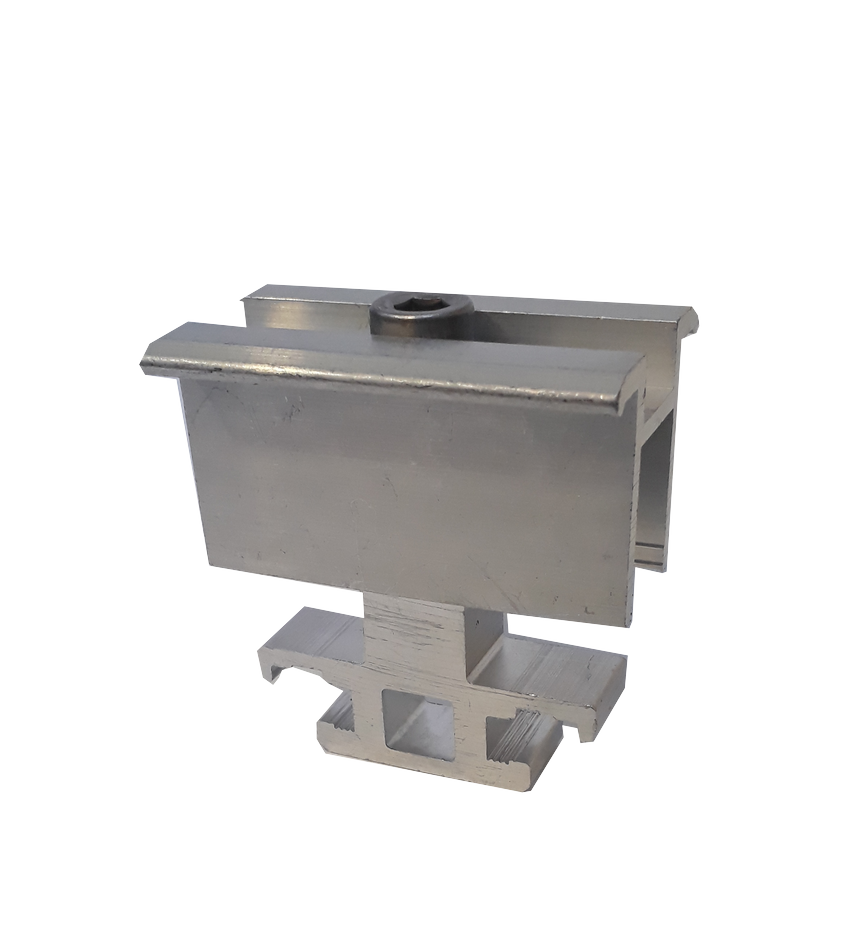

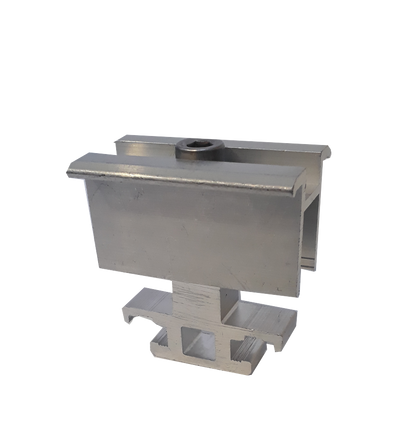

Universal Clamp 30-42

The clamp connects the PV module’s frame to the support structure. It runs along the pedestal’s rail and secures the module at clamping zones defined by the module manufacturer.
